In modern industrial and commercial applications, reliable data transmission is crucial for ensuring seamless operations and effective communication. As systems become more advanced and data demands increase, the need for efficient and uninterrupted data transmission has grown significantly. Ethernet slip rings play a vital role in high-speed data transmission, providing a robust solution for transferring data between rotating and stationary parts without any loss or interference. Grand Slip Ring, a renowned manufacturer, offers a range of high-quality Ethernet slip rings designed to meet the stringent requirements of various industries. These slip rings ensure that data transmission remains fast, reliable, and efficient, making them indispensable in applications such as robotics, surveillance systems, and automated machinery. Additionally, for specialized needs, custom slip rings can be tailored to provide optimal performance and reliability.

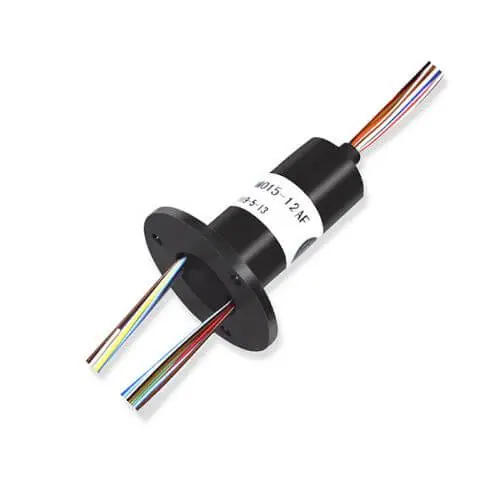

What are Ethernet Slip Rings?
Definition and Working Principle of Ethernet Slip Rings
Ethernet slip rings are specialized electromechanical devices designed to transmit Ethernet signals and data across rotating interfaces. In many industrial and commercial applications, it is crucial to maintain continuous data communication between stationary and rotating components. Ethernet slip rings provide a reliable solution for such scenarios, enabling high-speed data transmission without signal degradation or loss.
The working principle of Ethernet slip rings is based on the concept of traditional slip rings but with a focus on maintaining the integrity of high-frequency Ethernet signals. A typical Ethernet slip ring consists of a series of conductive rings and brushes. The rings are attached to the rotating part, while the brushes remain stationary. As the device rotates, the brushes maintain continuous contact with the rings, allowing for the uninterrupted transmission of electrical signals.
The construction of Ethernet slip rings involves the use of advanced materials and precise engineering to ensure minimal contact resistance and high conductivity. This design helps to preserve the quality of the Ethernet signals, preventing any loss or interference during transmission. Additionally, Ethernet slip rings often include shielding and noise suppression features to further enhance signal integrity.
Key Benefits: High-Speed Data Transmission, Reliability, and Minimal Signal Loss
High-Speed Data Transmission
One of the primary benefits of Ethernet slip rings is their ability to support high-speed data transmission. In modern applications, where data rates are constantly increasing, maintaining fast and efficient communication is essential. Ethernet slip rings are designed to handle high-frequency signals, such as Gigabit Ethernet or even higher-speed data protocols. This capability ensures that data is transmitted quickly and accurately, enabling real-time communication and control in various systems.
For example, in robotic applications, Ethernet slip rings allow for the seamless transmission of control signals and sensor data between the rotating joints and the central processing unit. This high-speed data transmission is critical for precise and responsive robot operations, enhancing overall performance and efficiency.
Reliability
Reliability is another significant advantage of Ethernet slip rings. In many industrial and commercial settings, equipment must operate continuously without interruption. Ethernet slip rings are engineered to provide consistent and dependable performance, even in demanding environments. The use of high-quality materials and advanced manufacturing techniques ensures that these slip rings can withstand wear and tear, vibration, and other mechanical stresses.
For instance, in surveillance systems, Ethernet slip rings enable the continuous rotation of cameras while maintaining a stable data connection. This reliability is crucial for ensuring uninterrupted video feed and effective monitoring. Similarly, in automated machinery, Ethernet slip rings support the continuous exchange of data between moving parts and control systems, reducing the risk of downtime and enhancing productivity.
Minimal Signal Loss
Maintaining signal integrity is a key concern when transmitting high-frequency data. Ethernet slip rings are designed to minimize signal loss and interference, ensuring that data is transmitted accurately and efficiently. The contact mechanisms within these slip rings are optimized to reduce electrical noise and maintain a stable connection, even during continuous rotation.
For example, in aerospace applications, Ethernet slip rings are used to transmit data between rotating antennas and stationary control systems. The ability to maintain minimal signal loss is critical for ensuring reliable communication and data transfer, which are essential for the safe and efficient operation of aerospace systems.
Ethernet slip rings are essential components in modern industrial and commercial applications, providing high-speed data transmission, reliability, and minimal signal loss. Their advanced design and construction enable them to handle the demands of high-frequency Ethernet signals, making them suitable for a wide range of uses, from robotics and surveillance systems to automated machinery and aerospace applications. The integration of Ethernet slip rings ensures that data communication remains fast, reliable, and efficient, enhancing the performance and reliability of various systems.
In addition to their standard offerings, manufacturers like Grand Slip Ring also provide custom solutions to meet specific application requirements. Whether it’s a capsule slip ring for space-constrained environments or a high-capacity slip ring for demanding industrial applications, Ethernet slip rings offer the versatility and performance needed to keep pace with the growing demands of modern technology.
Applications of Ethernet Slip Rings
Ethernet slip rings are pivotal in various high-tech applications that require reliable, high-speed data transmission across rotating interfaces. These slip rings are specifically designed to ensure continuous data flow and signal integrity in systems where components are in constant motion. Here, we explore several key applications of Ethernet slip rings, highlighting their benefits in surveillance systems, offshore wind turbines, robotics, and automated machinery.
Surveillance Systems
In modern surveillance systems, Ethernet slip rings play a critical role in enabling continuous 360-degree rotation of cameras. These systems rely on high-speed data transmission to deliver real-time video feeds for security and monitoring purposes. Traditional slip rings often struggle with maintaining signal integrity and can introduce noise, leading to poor image quality. However, Ethernet slip rings are engineered to handle high-frequency Ethernet signals, ensuring that video data is transmitted without loss or interference.
Benefits:
Continuous Rotation: Allows surveillance cameras to rotate freely, providing comprehensive coverage without blind spots.
High Data Integrity: Ensures that high-resolution video feeds are transmitted with minimal latency and no signal degradation.
Reduced Maintenance: The robust design of Ethernet slip rings reduces wear and tear, resulting in lower maintenance requirements and longer operational life.
Offshore Wind Turbines
Offshore wind turbines are exposed to harsh environmental conditions, including saltwater, strong winds, and extreme temperatures. Ethernet slip rings are crucial in these settings, facilitating the transmission of power and data between the rotating blades and the stationary platform. These slip rings support the control systems and sensors that monitor turbine performance, enabling efficient energy production and real-time data analysis.
Benefits:
Continuous Rotation: Supports the constant rotation of turbine blades, essential for optimal energy capture.
High Data Integrity: Maintains reliable communication between sensors and control systems, ensuring accurate performance monitoring.
Reduced Maintenance: Designed to withstand harsh marine environments, Ethernet slip rings offer durability and require less frequent maintenance, reducing operational costs.
Robotics
In robotics, particularly in industrial and medical applications, Ethernet slip rings enable the seamless transmission of data and power across rotating joints. Robots often require the transfer of complex control signals, sensor data, and high-speed Ethernet communications to function efficiently and accurately. Ethernet slip rings ensure that these data streams remain uninterrupted, allowing robots to perform precise and coordinated movements.
Benefits:
Continuous Rotation: Enables robotic joints and arms to rotate freely without disrupting data and power transmission.
High Data Integrity: Ensures that control signals and sensor data are transmitted accurately, enhancing the robot’s operational efficiency and precision.
Reduced Maintenance: Ethernet slip rings in robotics are designed for high durability, reducing downtime and maintenance needs, which is crucial in high-demand industrial environments.
Automated Machinery
Automated machinery in manufacturing and assembly lines relies heavily on Ethernet slip rings to maintain seamless communication between rotating and stationary parts. These machines often operate at high speeds and require the transmission of large volumes of data to control systems. Ethernet slip rings provide the necessary high-speed data connections, ensuring that the machinery operates smoothly and efficiently.
Benefits:
Continuous Rotation: Supports the free movement of machine components, essential for high-speed manufacturing processes.
High Data Integrity: Maintains the integrity of data transmissions, ensuring accurate and timely control signals for machinery operations.
Reduced Maintenance: The robust design of Ethernet slip rings reduces the need for frequent maintenance, increasing uptime and productivity in manufacturing environments.
Ethernet slip rings are indispensable in a variety of applications that require high-speed, reliable data transmission across rotating interfaces. Their ability to support continuous rotation, maintain high data integrity, and reduce maintenance needs makes them ideal for use in surveillance systems, offshore wind turbines, robotics, and automated machinery. By integrating Ethernet slip rings, these systems can achieve enhanced performance, greater efficiency, and reduced operational costs.
Moreover, the versatility of Ethernet slip rings means they can be tailored to meet specific application requirements. Whether it’s ensuring seamless video feed transmission in security cameras, enabling efficient energy production in wind turbines, enhancing the precision of robotic movements, or supporting high-speed manufacturing processes, Ethernet slip rings provide the robust and reliable solutions needed to keep modern technology running smoothly.
Technical Features and Specifications

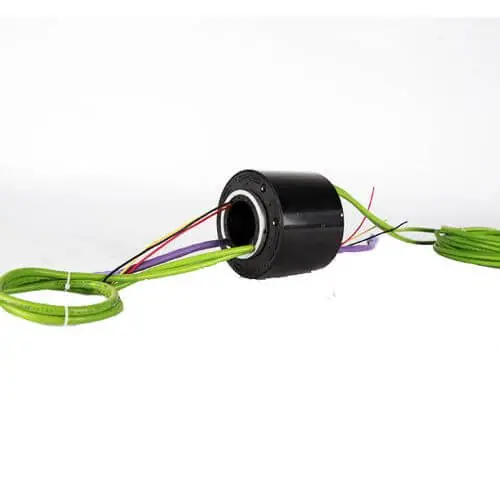

Overview of Different Types of Ethernet Slip Rings
Ethernet slip rings come in various configurations, each tailored to meet the specific requirements of different applications. These configurations differ in size, number of channels, and additional features, allowing users to select the most suitable slip ring for their needs.
Sizes
Ethernet slip rings are available in a range of sizes, from compact models designed for space-constrained applications to larger units capable of handling higher data and power loads. The size of a slip ring is typically defined by its outer diameter and length. Smaller slip rings, with diameters as small as 12mm, are ideal for applications like robotics and medical devices where space is limited. Larger slip rings, with diameters exceeding 50mm, are suitable for industrial machinery and wind turbines, where they can support more extensive data and power transmission requirements.
Number of Channels
The number of channels in an Ethernet slip ring determines how many separate circuits it can handle simultaneously. This is crucial for applications requiring the transmission of multiple data streams and power lines. Ethernet slip rings can range from a few channels to several dozen. For example, a slip ring with 8 channels might be sufficient for a simple surveillance system, while a more complex robotic application might require a slip ring with 24 or more channels to manage various control signals, power supplies, and data connections.
Additional Features
Ethernet slip rings often come with a variety of additional features to enhance their functionality and durability. These features can include:
Shielding: To protect against electromagnetic interference (EMI) and ensure the integrity of high-frequency data signals.
Noise Suppression: To minimize electrical noise and ensure clear signal transmission.
Advanced Contact Materials: Such as gold-gold or silver-graphite contacts, which reduce wear and ensure a long service life.
Environmental Protection: Features like IP65 or higher ratings to protect against dust, moisture, and other environmental factors, making them suitable for outdoor and industrial applications.
Detailed Look at Grand Slip Ring’s Ethernet Slip Ring Models
Grand Slip Ring is a renowned manufacturer known for its high-quality Ethernet slip rings. Their product line includes a variety of models designed to meet different application needs. Below are detailed specifications and unique features of some of Grand Slip Ring’s popular Ethernet slip ring models:
Grand Slip Ring EHM022
Size: Outer diameter of 22mm
Number of Channels: 12 circuits, including 2 dedicated Ethernet channels
Signal Types: Supports both power and high-speed Ethernet data transmission
Features: Compact design, low torque, high rotational speed up to 300 rpm, advanced gold-gold contact technology for low electrical noise and long service life.
Grand Slip Ring EHM025
Size: Outer diameter of 25mm
Number of Channels: 24 circuits, with 2 Ethernet channels for Gigabit Ethernet
Signal Types: Capable of handling power, analog, and digital signals
Features: High data integrity with noise suppression, robust construction for industrial use, and IP65 rating for dust and moisture protection.
Grand Slip Ring EHG2578
Size: Outer diameter of 38mm
Number of Channels: 12 circuits, including 4 channels for Ethernet
Signal Types: Supports high-speed Ethernet, power, and control signals
Features: Larger size suitable for heavy-duty applications, advanced shielding to prevent EMI, and high-quality silver-graphite contacts for extended durability.
Grand Slip Ring EHG3899
Size: Outer diameter of 40mm
Number of Channels: 24 circuits, with 4 Ethernet channels supporting Gigabit speeds
Signal Types: Handles multiple signal types, including power and high-frequency data
Features: Enhanced for demanding environments with robust construction, IP67 rating for superior protection, and modular design for easy integration and maintenance.
Grand Slip Ring EHG50120
Size: Outer diameter of 12.5mm
Number of Channels: 18 circuits, including 2 for Ethernet
Signal Types: Ideal for compact applications requiring high-speed Ethernet and power transmission
Features: Ultra-compact design, low friction for high rotational speeds, and specialized materials to reduce wear and extend service life.
Grand Slip Ring EHG60135
Size: Outer diameter of 60mm
Number of Channels: 36 circuits, including 6 channels for Ethernet
Signal Types: Supports comprehensive power, data, and control signal transmission
Features: Designed for large-scale industrial applications, advanced environmental sealing with IP68 rating, and high-precision contacts for reliable performance.
Grand Slip Ring’s Ethernet slip rings offer a comprehensive range of options to meet the diverse needs of different industries. From compact models designed for tight spaces to larger units built for heavy-duty applications, Grand Slip Ring’s slip rings ensure reliable and efficient data transmission across rotating interfaces. With features like advanced contact materials, noise suppression, and environmental protection, these slip rings provide the durability and performance necessary for modern technological demands.
By understanding the technical features and specifications of different Ethernet slip rings, users can make informed decisions to select the right model for their specific requirements. Whether it’s for high-speed data transmission in robotics, reliable communication in surveillance systems, or robust performance in industrial machinery, Grand Slip Ring’s Ethernet slip rings deliver the quality and reliability needed to keep operations running smoothly.
Selecting the Right Ethernet Slip Ring
Choosing the right Ethernet slip ring for your application involves a thorough understanding of various factors, including data transmission requirements, environmental conditions, and mechanical constraints. Making the correct choice ensures optimal performance, reliability, and longevity of your system. This section will guide you through the key considerations and provide tips for selecting the most suitable Ethernet slip ring for specific applications.
Factors to Consider
Data Transmission Requirements
The primary purpose of an Ethernet slip ring is to ensure reliable and high-speed data transmission between stationary and rotating components. Therefore, understanding your data transmission needs is crucial.
Data Rate: Determine the required data rate for your application. Ethernet slip rings are available in various specifications, including 100 Mbps (Fast Ethernet), 1 Gbps (Gigabit Ethernet), and 10 Gbps. Ensure that the slip ring you choose can handle the maximum data rate your system requires.
Number of Channels: Assess how many separate data channels are needed. If your application involves transmitting multiple data streams simultaneously, you will need a slip ring with multiple Ethernet channels.
Signal Integrity: Consider the need for high signal integrity, especially in applications requiring minimal data loss and interference. Advanced contact materials like gold-gold or silver-graphite contacts are beneficial for maintaining signal quality.
Environmental Conditions
The environment in which the Ethernet slip ring will operate significantly impacts its performance and durability. Different applications present unique environmental challenges that must be considered.
Temperature: Evaluate the operating temperature range. Some Ethernet slip rings are designed to function in extreme temperatures, both high and low. Ensure that the slip ring can withstand the temperature conditions of your application.
Humidity and Moisture: For applications exposed to high humidity or direct moisture, such as offshore wind turbines or outdoor surveillance systems, select a slip ring with appropriate IP (Ingress Protection) ratings. An IP65 or higher rating indicates good protection against dust and water ingress.
Vibration and Shock: In environments subject to high vibration or mechanical shock, such as industrial machinery or aerospace applications, choose an Ethernet slip ring designed to endure these stresses without compromising performance.
Mechanical Constraints
Understanding the mechanical constraints of your system is essential for ensuring seamless integration and operation.
Size and Space: Identify the physical space available for the slip ring within your system. Ethernet slip rings come in various sizes, and selecting one that fits within the spatial constraints is crucial. Compact designs are ideal for space-constrained applications.
Rotational Speed: Determine the maximum rotational speed the slip ring will experience. Ensure the selected slip ring can operate effectively at these speeds without excessive wear or signal degradation.
Mounting and Integration: Consider how the slip ring will be mounted and integrated into your system. Some slip rings come with flanges or other mounting features to facilitate installation.
Tips for Choosing the Right Ethernet Slip Ring for Specific Applications
1. Define Your Application Requirements
Start by clearly defining the specific requirements of your application. Create a comprehensive list that includes data transmission needs, environmental conditions, and mechanical constraints. This will serve as a reference point when evaluating different Ethernet slip rings.
2. Consult with Manufacturers
Engage with reputable slip ring manufacturers to gain insights into their products and capabilities. Manufacturers like Grand Slip Ring can provide valuable advice and recommend the best slip ring models for your specific needs. They can also offer custom solutions if standard products do not meet your requirements.
3. Prioritize Quality and Reliability
While cost is an important consideration, prioritize quality and reliability when selecting an Ethernet slip ring. Investing in a high-quality slip ring ensures long-term performance and reduces the risk of failure and maintenance costs. Look for products with advanced contact materials and robust construction.
4. Consider Future Scalability
Think about the future scalability of your system. If there is a possibility of increased data transmission needs or harsher environmental conditions, choose an Ethernet slip ring that can accommodate these future requirements. This approach can save time and resources in the long run.
5. Evaluate Performance Data
Review the technical specifications and performance data provided by the manufacturer. Pay close attention to details such as data rate capabilities, number of channels, contact materials, and environmental ratings. Ensure that the slip ring meets or exceeds your application’s requirements.
6. Test in Real-World Conditions
If possible, conduct tests with the selected Ethernet slip ring in real-world conditions. This allows you to assess its performance and reliability in your specific application environment. Testing helps identify any potential issues and confirms that the slip ring will function as expected.
Selecting the right Ethernet slip ring involves careful consideration of data transmission requirements, environmental conditions, and mechanical constraints. By defining your application’s specific needs, consulting with manufacturers, prioritizing quality, considering future scalability, evaluating performance data, and testing in real-world conditions, you can make an informed decision that ensures optimal performance and reliability. Ethernet slip rings are critical components in many modern systems, and choosing the right one will enhance your system’s efficiency and longevity, providing seamless data transmission across rotating interfaces.
