As energy prices fluctuate and carbon mandates grow stricter, industrial facilities are looking beyond rooftop solar to meet on-site renewable energy goals. While solar dominates most distributed energy discussions, it comes with known limitations—intermittency, weather dependence, and low nighttime output.
A complementary and increasingly viable solution is the vertical-axis wind turbine (VAWT), especially in the 5kW capacity range. These turbines, unlike their horizontal-axis counterparts, are specifically suited for industrial rooftops due to their compact footprint, quiet operation, and ability to generate power in low or turbulent wind conditions.
This guide walks through how to successfully deploy a 5kW VAWT on industrial roofs, what specifications matter most, and how to assess return on investment with confidence.
Why Wind Turbines Work on Industrial Roofs
Most industrial buildings already have the key ingredients needed for on-site wind generation: flat, reinforced rooftops, consistent energy demand, and exposure to airflow patterns caused by surrounding structures. In fact, many facilities unintentionally create favorable wind corridors through building design and roof-edge effects.
A 5kW VAWT, when installed properly in a location with average wind speeds of 5.0 to 6.0 meters per second, can generate between 20,000 and 30,000 kilowatt-hours per year. That’s enough to supply auxiliary loads such as fans, compressors, lighting, or even partial HVAC operation.
Key advantages of VAWTs for rooftops include:
- Continuous, all-season power generation—even when solar is offline
- Quiet operation (under 45 decibels) for noise-sensitive zones
- Low mounting height requirements, simplifying compliance
- A compact footprint, enabling integration alongside existing solar panels
Choosing the Right 5kW Vertical Wind Turbine
While “5kW” describes output capacity, the reliability and efficiency of VAWTs depend heavily on design choices and technical parameters. Understanding what to prioritize helps reduce long-term cost and complexity.
Essential Performance Parameters
- Startup Wind Speed: Look for models with startup thresholds at or below 3.0 m/s. This ensures year-round functionality, especially in shoulder seasons when wind is variable.
- Rotor Design: Darrieus-type rotors (lift-based) are preferred over Savonius (drag-type) for their higher efficiency and stability in urban turbulence.
- Generator Type: Permanent magnet generators (PMG) or 3-phase AC output options allow for efficient energy capture and easy integration with inverters or hybrid solar systems.
- Brake System: A dual braking system (mechanical and electronic) is important for safe shutdowns during storms or maintenance.
- Noise Emissions: Noise ratings below 45 dB are suitable for rooftops near occupied office or lab spaces.
If possible, choose systems that are CE, IEC, or UL-certified with tested rotor fatigue performance and overspeed protection. These certifications reduce both liability and maintenance risk.

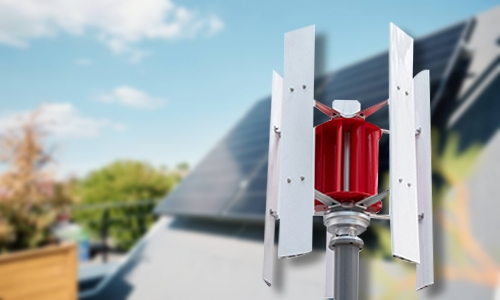

Recommended Product Example: PowerHome 5kW Vertical-Axis Wind Turbine
For those looking for a ready-to-deploy system, one example worth considering is the PowerHome 5kW VAWT.
This turbine features:
- A Darrieus-style rotor designed for low-turbulence efficiency
- Startup wind speed of 2.5 m/s, enabling more operational hours per year
- Output rated at 5,000 watts at 11 m/s, with estimated production of up to 30,000 kWh annually in optimal wind sites
- Height under 5.5 meters and weight under 450 kg, suitable for rooftop installation
- 3-phase AC output compatible with most hybrid inverters and microgrid systems
The PowerHome system also includes standard overspeed protection, sealed bearings, and corrosion-resistant components, making it appropriate for industrial or coastal installations.
While site suitability must still be confirmed, this product aligns well with the core parameters recommended in this guide—and offers a commercially supported route for businesses looking to take immediate action.
Site and Structural Considerations
Before installing any rooftop wind system, a basic engineering review should verify:
- Structural Load Capacity: The roof should support distributed loads of at least 150 to 200 kg per square meter.
- Wind Resource: Annual average wind speed above 4.5 m/s is considered the lower bound for economic feasibility. Use GIS wind maps or portable anemometers to verify.
- Clearance: Each 5kW VAWT typically requires 20–25 square meters of unobstructed space. Turbines should be spaced to avoid mutual wake effects.
- Accessibility: Turbine components should be deliverable via freight elevator or rooftop crane. Most units can be modularized.
- Vibration Damping: Use mounting platforms with shock absorbers or isolation pads to protect sensitive structures or equipment beneath.
For long-term performance, installations should be done on concrete slabs, steel-framed platforms, or structural bases certified for dynamic wind loading.
Total Cost and ROI Analysis
A well-designed 5kW VAWT system is not an impulse purchase—but it can yield measurable savings within a few years.
| Item | Estimate Range (USD) |
| Equipment + Controller | $6,000 – $15,000 |
| Installation | $2,000 – $5,000 |
| Total System Cost | $8,000 – $20,000 |
| Annual Output | 20,000 – 30,000 kWh |
| O&M Cost (Annual) | ~$100 – $200 |
| Payback Period | 4 – 6 years (↓3 with subsidies) |
Use site-specific simulations or tools like HOMER, PVSyst, or manufacturer-calculated yield maps to model your actual generation potential.
How to Avoid the Wrong Products
The small wind market includes both professional-grade vertical-axis turbines and low-cost imports that lack safety, longevity, or performance guarantees.
Avoid:
- Turbines with no documented braking or overspeed systems
- Models requiring wind speeds over 4 m/s to start
- Systems with no published fatigue or compliance testing
- Vendors that cannot provide third-party performance data or client case studies
In general, if the price seems unusually low (under $7,000 for a full 5kW system), it may reflect cut corners in safety or performance.
Integration with Existing Solar Systems
Many industrial sites already use rooftop solar. Wind power doesn’t replace solar—it complements it. Vertical turbines generate electricity at times when solar doesn’t, such as:
- Nighttime operation (especially during wind-active hours)
- Overcast or rainy days
- Winter seasons when solar irradiance is lower

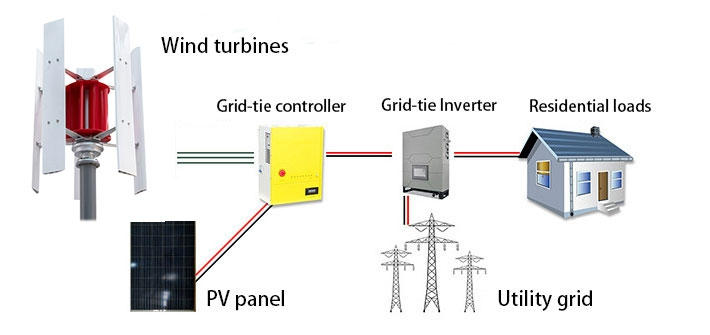

By combining VAWTs with hybrid solar inverters or battery storage, facilities can create a 24/7 local energy solution. Many 5kW wind systems can feed into existing MPPT charge controllers, microgrids, or commercial EMS dashboards with minimal reconfiguration.
Who Should Consider This Solution?
5kW rooftop VAWTs are best suited for:
- Logistics centers, light industrial buildings, and distribution hubs
- Facilities with reinforced flat roofs and energy loads above 300 kWh/day
- Buildings with 10m+ height, low shading, and consistent wind exposure
- Sites with demand for carbon reduction or LEED certification points
If you’re unsure about local wind resources or integration feasibility, a pre-deployment assessment can determine suitability in under 48 hours.
Conclusion: Smart Deployment Starts with Clear Priorities
Deploying rooftop wind power is no longer experimental. For facilities that meet basic siting and structural conditions, a 5kW vertical-axis turbine provides dependable, year-round energy output at a cost that pays for itself in under five years.
Unlike traditional turbines, VAWTs are designed for the built environment. With the right specifications and professional installation, they offer a clean, silent, and scalable way to meet on-site energy goals—even when the sun isn’t shining.
