What Is Liquid Silicone Injection Molding?
Liquid silicone injection molding (LSR molding) is an advanced manufacturing process used to produce high-quality silicone rubber parts. This method involves injecting liquid silicone rubber into a mold under high pressure to create precise, durable, and complex components. Silicone injection molding is widely used in industries like medical, automotive, consumer electronics, and baby products due to its biocompatibility, flexibility, and durability.

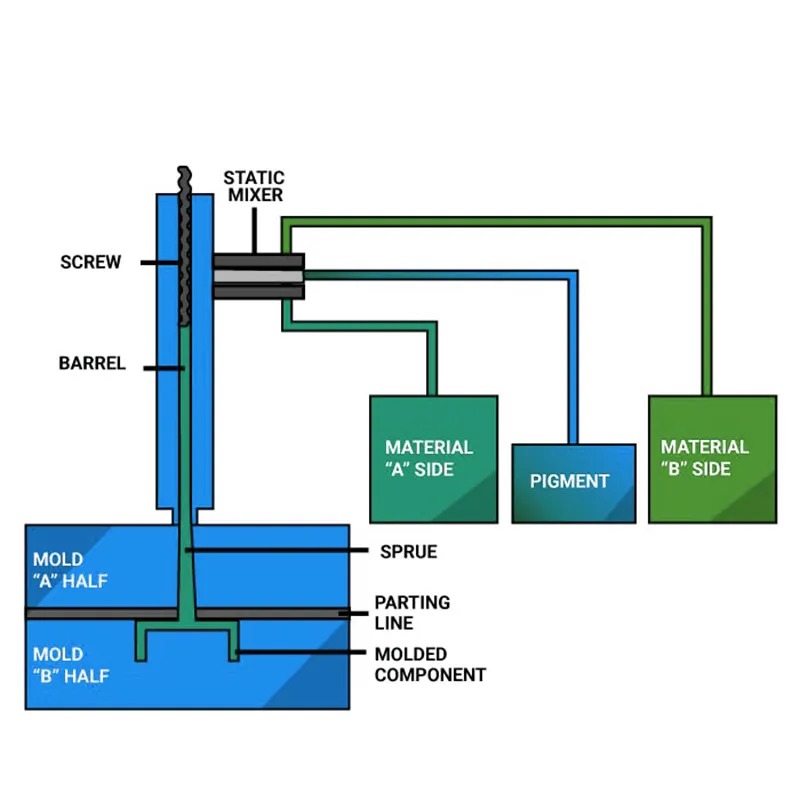

How Liquid Silicone Injection Molding Works
The LSR molding process involves several key steps:
- Material preparation – Two-part liquid silicone components (Part A and Part B) are mixed in a 1:1 ratio.
- Injection – The material is injected into a heated mold cavity.
- Curing – The silicone cures quickly due to heat, solidifying the part.
- Demolding – The finished part is ejected from the mold.
This highly automated process is ideal for high-volume production and precision manufacturing.
Key Advantages of Liquid Silicone Injection Molding
1. High Precision and Repeatability
Liquid silicone rubber flows easily and cures quickly, making it ideal for producing intricate shapes with tight tolerances. The process ensures consistent quality in large production runs.
2. Biocompatibility
Silicone is non-toxic and hypoallergenic, which makes silicone injection molding perfect for medical devices, wearables, and baby care products.
3. Thermal Stability4. Chemical Resistance
LSR components can withstand extreme temperatures (-55°C to +300°C), making them suitable for automotive and industrial applications.
Silicone rubber resists water, UV light, ozone, and many chemicals, making LSR-molded parts durable in harsh environments.
Industries That Use Liquid Silicone Injection Molding
1. Medical and Healthcare
- Catheters
- Respiratory masks
- Seals and gaskets
- Drug delivery components
2. Automotive
- Electrical connectors
- Grommets
- Seals for engines and lighting systems
3. Consumer Electronics
- Buttons for remote controls
- Sealing elements in wearable tech
- Waterproof phone components
4. Infant Care
- Baby bottle nipples
- Teething rings
- Pacifiers
Design Considerations for LSR Injection Molding
Wall Thickness
Keep walls uniform to avoid sink marks and warping. Recommended wall thickness for LSR parts is between 0.5 mm to 5 mm.
Draft Angles
Adding draft angles (1–3°) in the mold design helps in easy demolding of the cured parts.
Undercuts and Inserts
Though undercuts can complicate the mold, LSR’s flexibility often allows for complex part designs, including inserts (metal or plastic) overmolding.
Common Challenges in Silicone Injection Molding
Flashing
LSR has low viscosity, increasing the risk of flashing (excess material seepage). Precision tooling and proper venting are essential to control it.
Material Waste
While the process is efficient, material waste can occur due to overflows and poor runner system design.
Mold Maintenance
Silicone is non-corrosive, but molds still require regular cleaning to avoid buildup and maintain dimensional accuracy.
Overmolding with Liquid Silicone Rubber
LSR overmolding involves injecting liquid silicone over another material (like plastic or metal) to create dual-material parts. This is commonly used for:
- Soft-touch grips
- Sealing elements
- Medical instruments with ergonomic features
Overmolding enhances functionality, appearance, and user comfort.
Tooling and Mold Design for LSR Molding
Precision tooling is critical in LSR injection molding. Key factors in tooling design include:
- Steel or aluminum mold construction
- Cold runner vs. hot runner systems
- Vents to reduce air entrapment
- Automated demolding systems for high-efficiency production
Molds for LSR are generally more expensive upfront but reduce long-term costs due to automation and high output.
Environmental Benefits of LSR Molding
Liquid silicone rubber is recyclable and inert, producing minimal environmental waste. Additionally, the high durability of silicone products reduces replacement frequency, contributing to sustainability.
Future Trends in Liquid Silicone Injection Molding
- Micro-molding of tiny medical and electronic parts
- Multi-material molding with thermoplastics
- Smart silicone parts with embedded electronics
- Sustainable silicone alternatives and closed-loop production systems
These advancements are pushing the boundaries of what LSR can achieve across industries.
Conclusion: Why Choose Liquid Silicone Injection Molding?
Liquid silicone injection molding is a powerful solution for producing durable, flexible, and precise components. Whether you’re in the medical, automotive, electronics, or consumer goods sector, LSR molding offers scalability, cost-efficiency, and product performance unmatched by other materials or processes.
With increasing demand for biocompatible, heat-resistant, and long-lasting parts, now is the perfect time to explore liquid silicone injection molding for your next product innovation.
